SKYDAS Standard Security Doors
Security doors — SKYDAS Standard
This door is ideal for residential properties. It is constructed from durable bent metal with complete thermal insulation, characterised by good thermal and sound insulation. Door finish is suitable for outdoors as it is made of waterproof, certified Belgian board Umidax HLS, which retains its characteristics even after mechanical damage. The board is painted in polyurethane paint that does not discolour for many years. The door can be personalised and made fire resistant.
Use of galvanized RUUKKI steel is recommended for entrance door construction.
Functional Statistics
| Symbol | Characteristics | Value |
|---|---|---|
 | Rating of sound insulation | 41dB Rw (C;Ctr) |
 | Rating of thermal transmittance | 1,3 W (m2-K) |
 | Resistance to repeated opening and closing | 100 000 cycles |

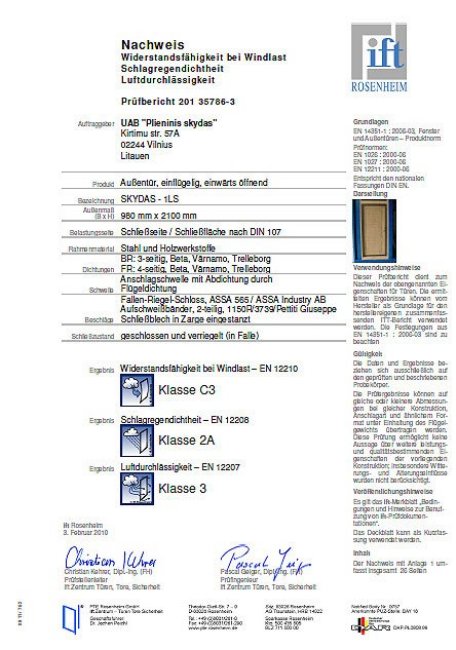

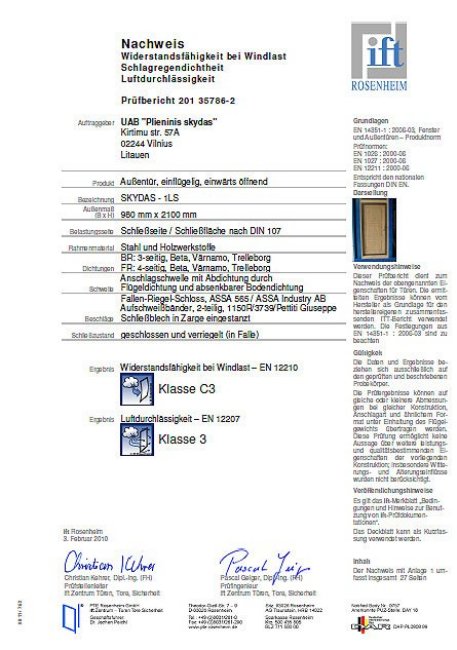

 | Identification of resistance to wind load | Class C3 |
 | Measurement of air permeability | Class 3 |
 | Identification of water tightness | Class 2A |
 | Identification of mechanical strength and rigidity | Class 4 |

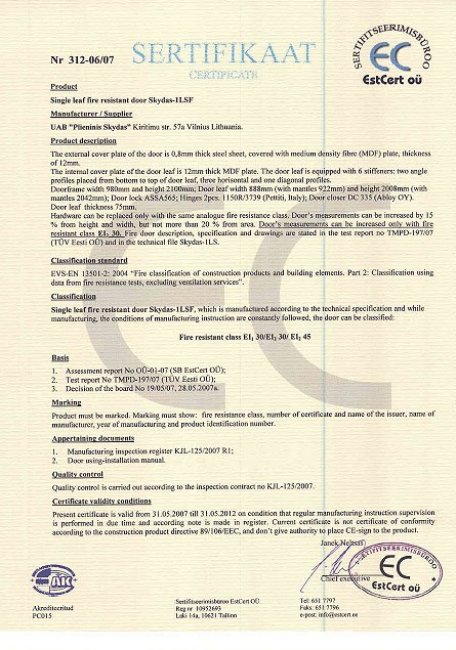

 | Identification of fire resistance | EI 30/ EI45 |

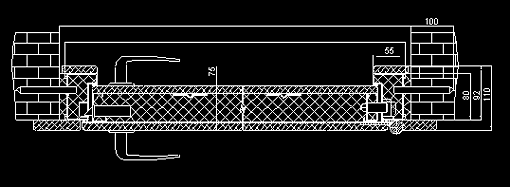

Standard Door Set
- 1. Door frame: bent L-shaped profile fixed in the door aperture by 8 pins. Complete thermal insulation by rock wool or foam
- 2. Door leaf: special bent metal structure; 100% thermal insulation by 50mm rock wool; total width of the leaf - 75mm
- 3. Hinges with supporting bearings, covered with chrome-plated finishing caps - 2 pieces
- 4. Protective roll pins for door hinges (16mm) - 2 piece
- 5. Insulation seals - 2 pieces
- 6. Peephole (14mm)
- 7. Outside and inside door leaf finish - UMIDAX - HLS board
- 8. Outside architraves
- 9. Locks - see the selection here.
Door Characteristics
Saves the heat in your home - Specially, because since the bent profile leaf structure does not have closed cavities, it can be completely thermally insulated by 50mm rock wool. The L-shaped bent frame and threshold ensure exclusive tightness through an additional seal applied to the entire perimeter (two seals in total).

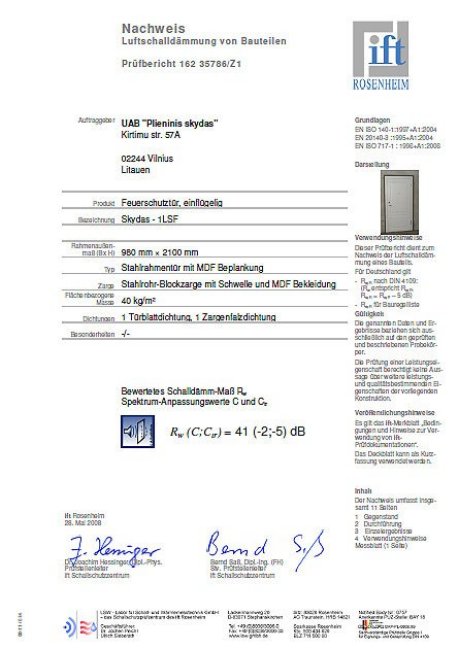

Tight, good heat and sound insulation - Due to the above mentioned full thermal insulation of the door construction, the sound insulation of the SKYDAS Standard door is 41dB. This door is especially tight and therefore, completely shuts out external odours and smoke.

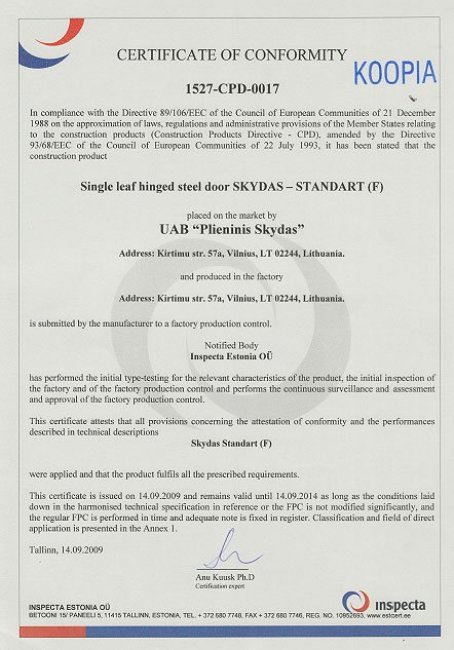

Fire resistant - With additional fire resistant components the SKYDAS Standard door can protect from fire for up to 45 minutes and withstand temperature of 1000C. The certificate was issued by Inspecta Estonia OU, No. 1527-CPD-0017. The boiler room doors of private houses already have to meet fire protection requirements. The fire can also spread from the garage.
Durable and lasting, convenient to use - All SKYDAS doors are manufactured by precision computer controlled machines - Amada - which can process metal to within a precision of 0.1 mm, therefore their construction is precisely accurate and straight. As hinges with supporting bearings are used, the doors are easy to open and close, despite having heavier weight characteristic to normal metal doors. The tests indicated that after 100,000 cycles of opening and closing, the structure of the door remained completely intact.
As the internal construction of the door has no closed cavities, the entire metal construction is covered in powder coating, which ensures long-term surface protection from corrosion.
The door finish is made of waterproof, certified Belgian board Umidax HLS, which can be milled without fear of distortion, flaking or losing its characteristics. The board is painted in your selected polyurethane paint that does not discolour for many years.
if required, when, for instance, your home undergoes a colour change during external refurbishment,the door finish can be easily replaced.
Use of galvanized RUUKKI steel is recommended for entrance door construction.
Simple to care for - Painted Umidax HLS board door finish does not require any specific care and is easy to clean.
Available designs - You can choose from almost 200 standard carvings or we will produce the doors according to your specific design. Doors can be fitted with glazing of various shapes - single leaf, double leaf, with arch, etc.
See the Door Gallery for a selection of photos.
Security Levels
However, if a higher security level is necessary, choose security doors SKYDAS Standard 2, SKYDAS Standard 3, or SKYDAS Premium, which burglar resistance was tested and certified in an authoritative scientific research laboratory - IFT Rosenheim - in Germany. These door models were developed embracing the knowledge of the aforementioned laboratory concerning the many possible ways and methods of burglary.
Technical Details
Available versions of the door.
Each door is manufactured precisely according to specific measurements.
Important: Fire resistance specification EI45 for fire resistant doors is applicable to measurements up to 2100x 980mm. If the height or width is increased by 15% (but not more than 20% of the total area), fire resistance will be to EI30 standard.
Threshold Options
Available thresholds (2mm thick)
- 1. black metal,
- 2. RUUKKI galvanized steel
- 3. matt stainless steel.
